Awake Mouse Head-Fixed Treadmill (Belt) ST-BTM100 - High-Precision Two-Photon Imaging & Behavioral System

Awake Mouse Head-Fixed Treadmill (Belt Version)

清醒小鼠头固定跑步机（跑带版）

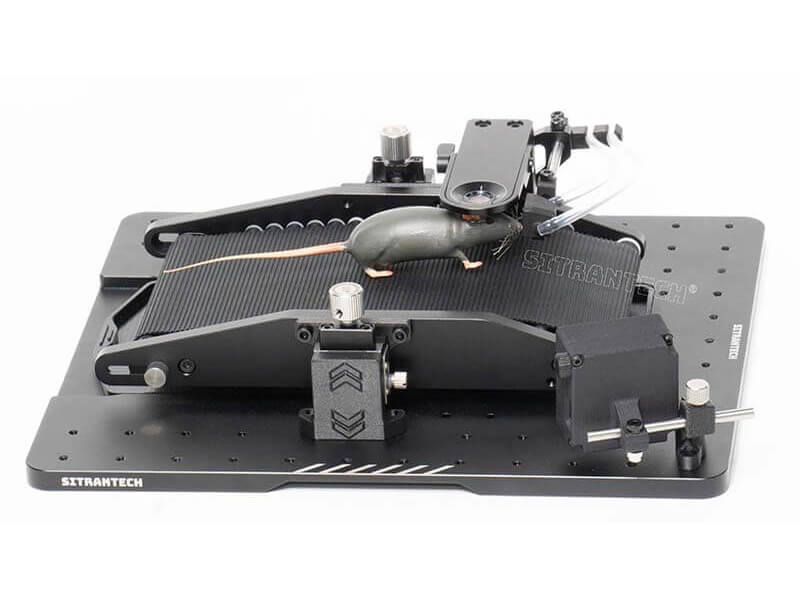

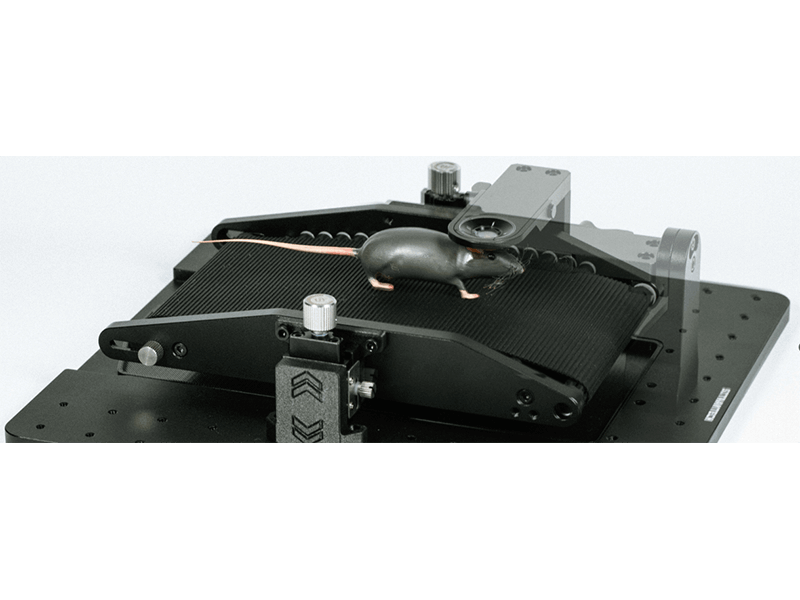

Mouse Running Demo

Model No.

ST-BTM100

Product Description

The Awake Mouse Head-Fixed Treadmill (Belt Version) enables rapid and convenient head fixation, facilitating deep exploration of the relationship between the brain and behavior in awake animals. With robust expandability and stability as its core advantages, it provides researchers with a highly flexible and customizable experimental platform. Meticulously engineered for a compact footprint, it seamlessly integrates with the vast majority of two-photon microscopes on the market, offering exceptional compatibility.

Applications

Two-Photon Imaging
Electrophysiology & Optogenetics
Sensorimotor System Research
Animal Behavior Studies, etc.

Key Features & Advantages

Stable Head Fixation System

Head fixation for awake mice can be completed in just **3 steps**. In two-photon imaging applications, imaging displacement is maintained within 5μm.

Versatile Fixation Modes

Adapts to diverse experimental scenarios.

Lateral Fixation: Suitable for standard awake mouse head fixation.
Midline Fixation: Allows adjustment of the head holder's tilt angle for observing peripheral brain regions. The treadmill can be synchronously tilted to ensure the mouse moves freely in a comfortable posture.

Modular Design

The entire device supports rapid assembly and disassembly to quickly adapt to different experimental requirements. It supports future upgrades, significantly enhancing system versatility and expandability.

Current optional modules include: **Behavior Camera, Anesthesia Mask, VR System, Motion Recording & Passive Control System, Water Reward System, Air Puff Module, and Tail Shock Module (customizable upon request)**.

Technical Specifications

Model No	ST-BTM100

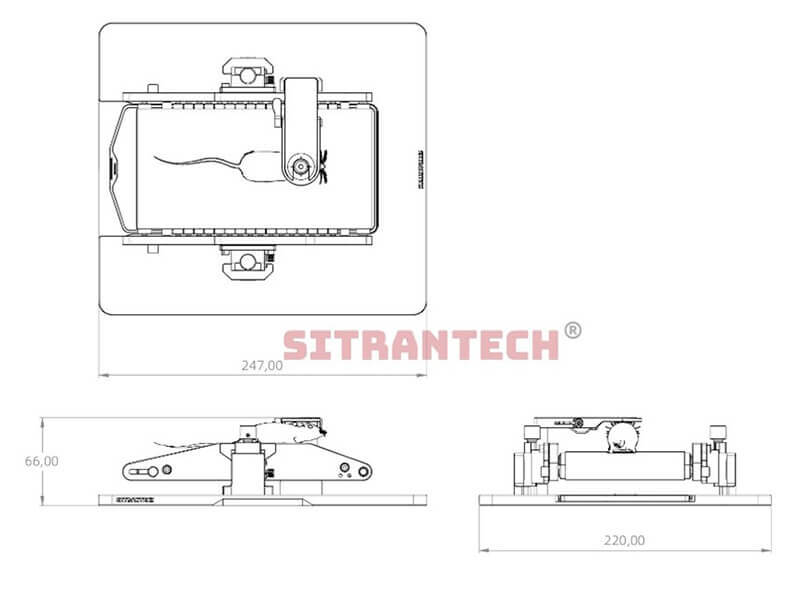

Dimensions	Approx. 247mm (L) x 220mm (W) x 66mm (H)
Power Supply	DC 5V
Adjustment Range	Height Adjustment: 0 - 10mm

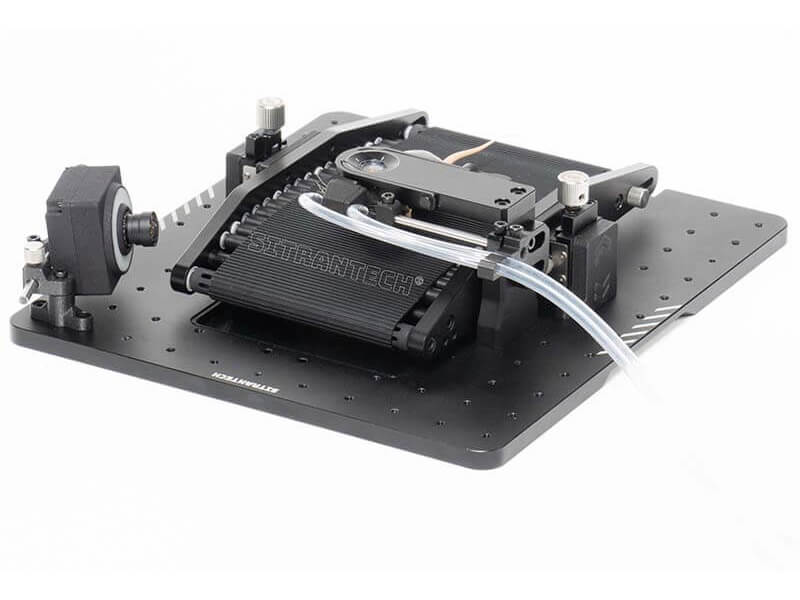

Behavior Camera	• Type: USB Plug-and-Play (Driver-free) • Resolution: 5.0 Megapixels • Frame Rate: 30fps • Lens: 3-12mm Varifocal • Illumination: Integrated 850nm adjustable IR light
Expansion Support	Compatible with VR Systems, Water Reward Modules (Lickometers), and Air-Puff Stimulation Modules.
