Real-Time Interaction: Mouse Movement & VR Scene

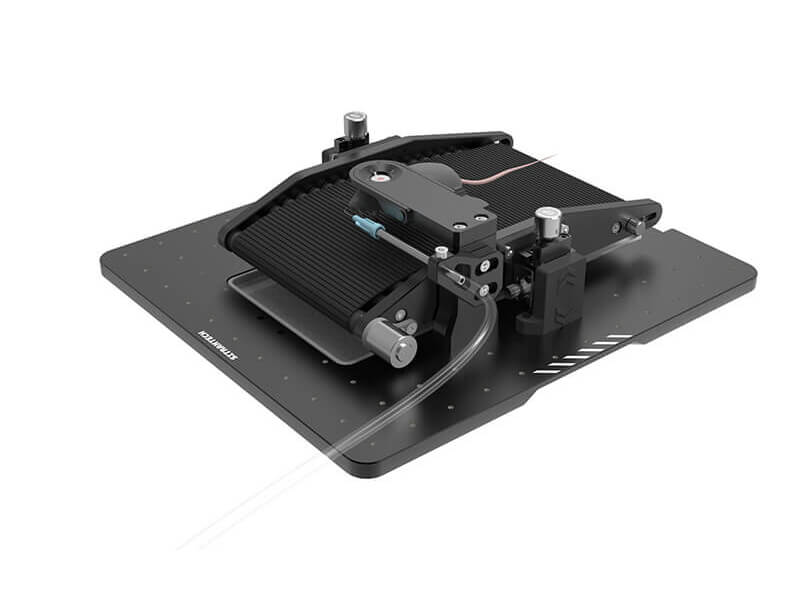

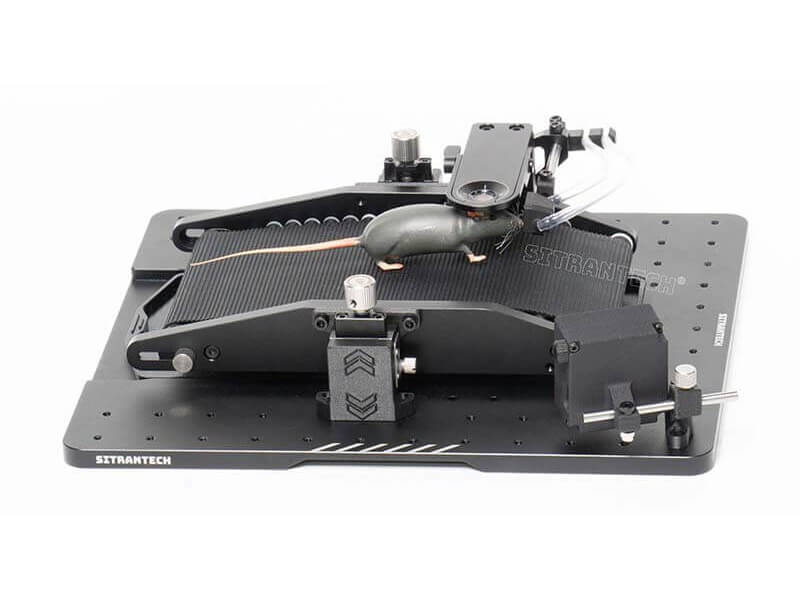

ST-TM100VR
Product DescriptionBy perfectly combining physical movement with virtual environmental stimuli, this system builds a precise and controllable experimental platform for neuroscience research. Designed for studying environmental coding, learning and memory, and spatial navigation mechanisms, it provides an unprecedented window for observing real-time brain responses.
- Immersive Closed-Loop: High-precision sensors + curved screen, realizing millisecond-level linkage between movement and vision.
- Ultimate Stability: Imaging displacement < 5μm, meeting high-precision two-photon imaging requirements.
- Modular Expansion: Supports rapid assembly of pupil cameras, water reward systems, and anesthesia modules.
Key Features & Advantages
Immersive VR Closed-Loop System
Compared to spherical systems on the market, we adopt a **curved screen design**, which greatly enhances the mouse's immersion while keeping the device compact. Combined with a high-precision encoder (4096 lines), it realizes real-time and precise linkage between mouse movement and virtual scenes.

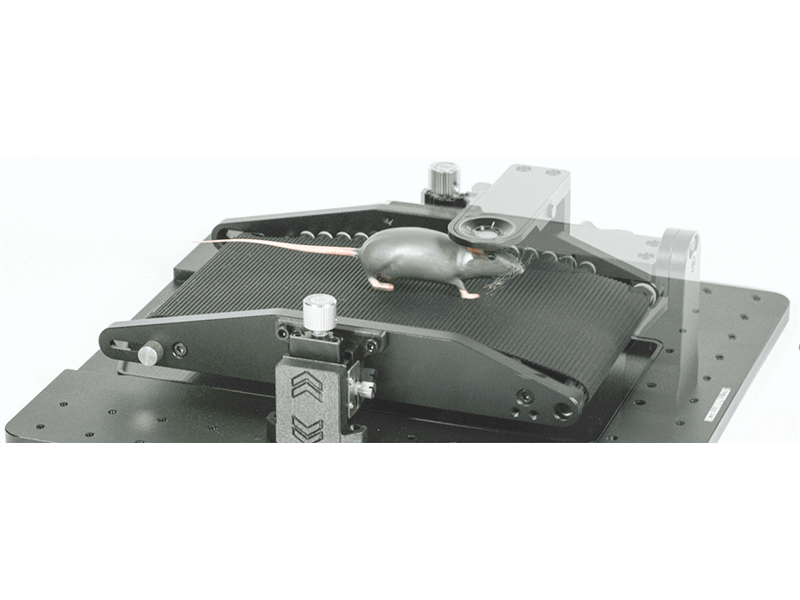

Low-Resistance Flexible Belt
Abandoning traditional rigid belts, we use **custom-molded flexible silicone belts**. The unique transverse rib design increases friction and significantly reduces movement resistance, allowing mice to run with less effort and a more natural gait, ensuring data quality for long-term experiments.

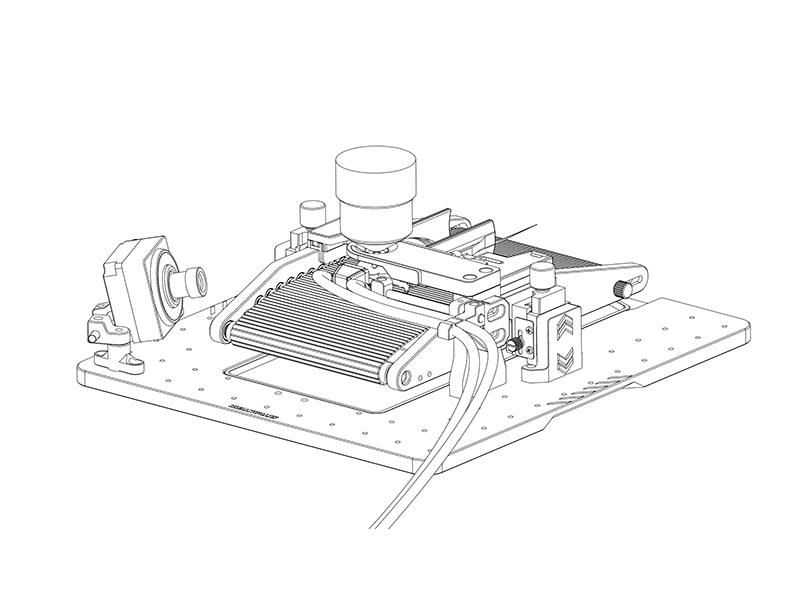

High-Flexibility Modular Design

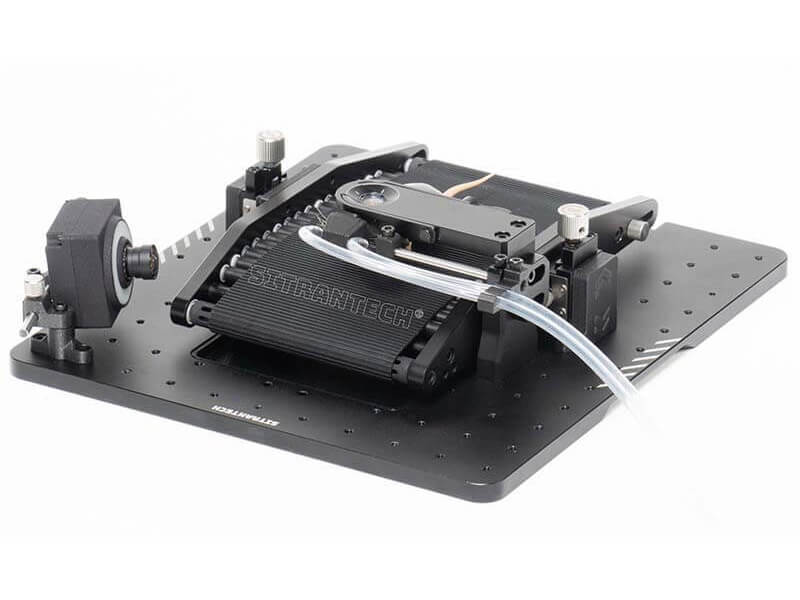

The system is as flexible as building blocks. It can be rapidly equipped with **HD IR cameras** (for pupil/expression recording), **water reward modules**, or **anesthesia masks**. Bilateral sliding stages are independently controlled, supporting synchronous lifting and tilt adjustment to adapt to various complex experimental scenarios.
Technical Specifications
| Encoder Parameters | Resolution: 4096 lines, 1MHz response frequency |
|---|---|

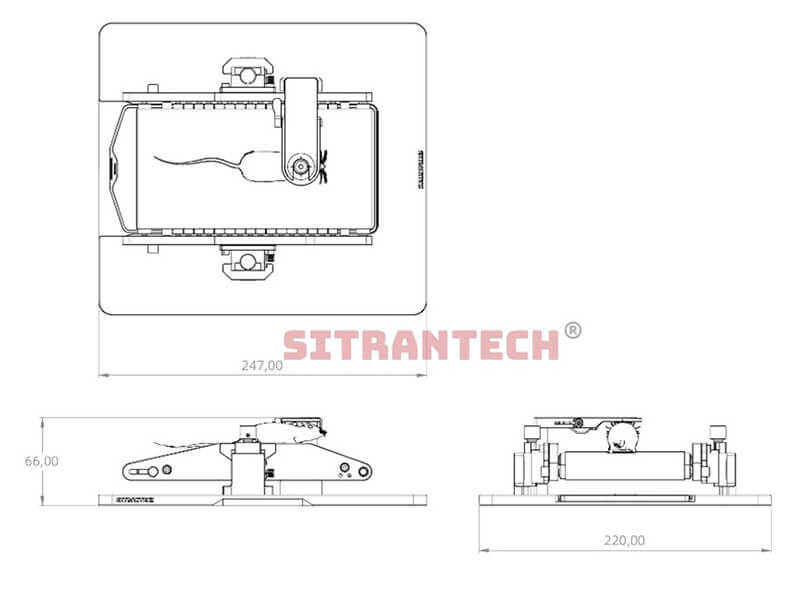

| Imaging Window Height | 66mm |
| Adjustment Range | Height: 0-10mm; Supports tilt adjustment |
| Behavior Camera |
|
| Power Supply | DC 12V |
| Expansion Support |
|
